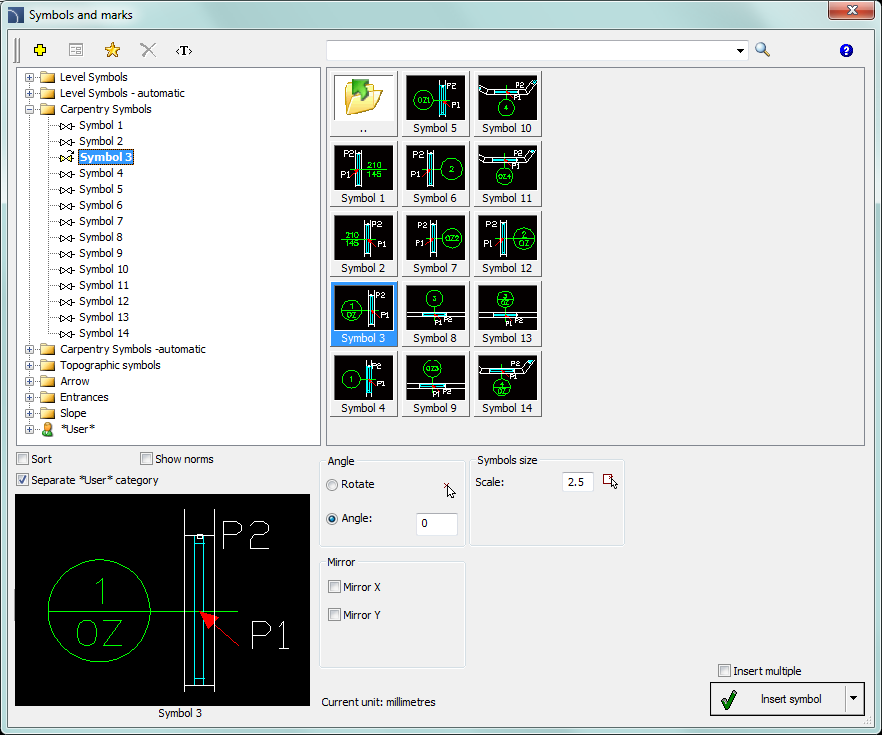

Symbols and marksCADprofi possesses several categories architectural marks symbols. Most of these symbols are available in the Symbols and marks command. To obtain a quicker access for certain marks, they have been also added to additional commands e.g. Level symbols or Topographic symbols.

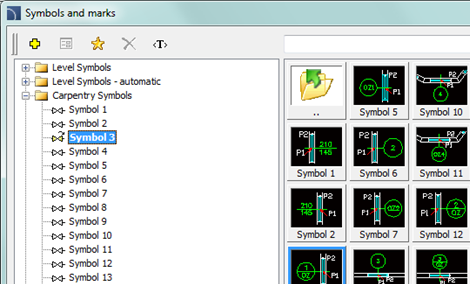

One of the categories available in the Symbols and marks command are the woodwork elements marks. These symbols allow to specify number, label and dimensions of described element. These data can be later used when creating BOMs and obtaining a variety of information about the project. In order to describe various objects user should use appropriate symbols.
Example: for windows inserted into the drawing horizontally, user should use appropriate symbols and for windows inserted with a 90 degrees angle - different symbols.
When describing many objects it's convenient to select the Insert multiple option.
 |
