CADprofi possesses several categories architectural marks symbols. Most of these symbols are available in the Symbols and marks command. To obtain a quicker access for certain marks, they have been also added to additional commands e.g. Level symbols or Topographic symbols.

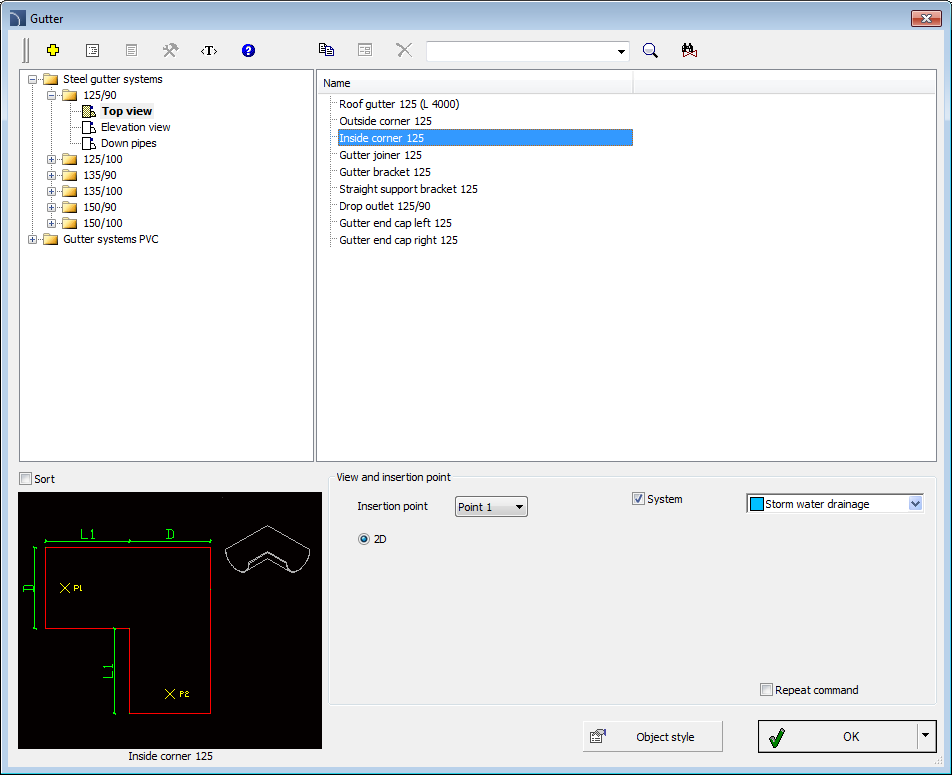

Gutter dialog window
Gutter dialog window contains the following elements:
List of categories – displays a list of available elements grouped in categories and subcategories.
Sort – enables/disables categories alphabetical order.
Detailed list – list of elements available for the selected category.
Preview – displays the preview of the currently selected element. Right-clicking on the preview window will zoom the view.
View and insertion point – view selection and object insertion points. Available options depend on the type of object.
Object style – options that allow to specify the object style and the level of object detail.
Object style dialog window
•Insert as block –allows user to insert an element that is exploded into component parts or a one single object (block).
•With attributes – enables/disables adding of attributes to the inserted object.
•Axes – enables/disables an option to draw axis in the inserted object.
•Hidings – enables/disables drawing elements that are hidden in an object.
•Wipeout (covers) – enables/disables addition to the inserted elements Covers (Wipeout) type objects.
•Details, hatch – enables/disables drawing of hatches and object details such as holes in the flanges, arrows that indicate the direction flow and others.
•Texts– enables/disables drawing of potential texts in objects.
|
Notice All „Object style” settings will be remembered and used when user runs the command again. |
Parameters – options that specify additional parameters of inserted object.
•System – if in the program options, the extended layer name structure (check page. 32) is enabled then objects will be inserted on layers depending on the kind of installation (system). In case of inserting objects into an existing line then the System option is being ignored and the object layers depends on the line kind.
 |
OK – allows user to insert selected object into the drawing.
Insertion options
– expands the list of available insertion
options:
•Insert (specify style for object) – inserts selected object with a possibility to change options in the Object style dialog window.
•Insert (specify all dimensions) – inserts selected object with possibility to specify all dimensions that can be edited. It is also possible to save the user dimensions by Creating and extending the user type of series Creating and extending user type of series).
