The diagram generator allows you to easily and visually create a diagram with different heat sources. In the generator, the user can select a buffer system (1, 2, or 3 buffers connected in series or in a Tichelmann system). It is also possible to define the number of heating circuits by selecting the desired pump groups.
The generator is available in the Uponor and Strawa libraries.

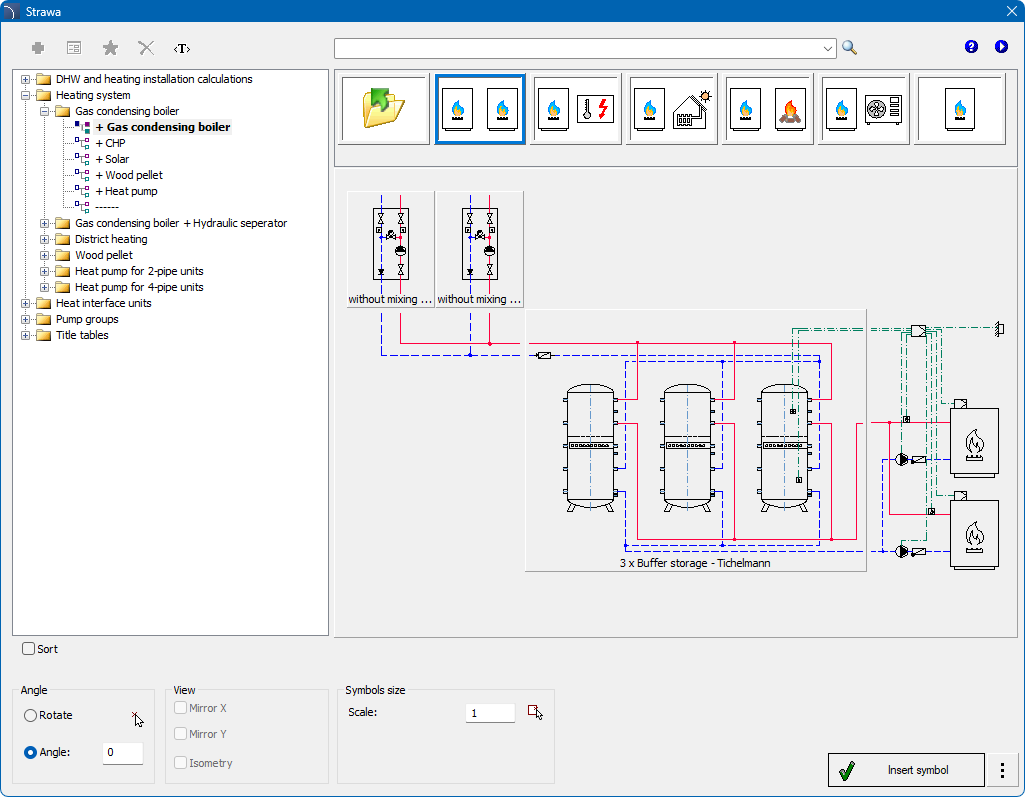

The main window that allows user to conveniently define any scheme
