Measuring points

The Measuring points   command contains markings according to the ISO 128 and DIN 6773 standards.



Functionality and the detailed way of handling the command are described in the
Symbols and markings chapter.

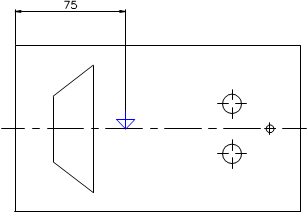

Below are examples of using this command:
