To uninstall the program, follow the following steps:
1. Remove the license (return the license to the CADprofi server).
2. Disconnect CADprofi from CAD programs.
3. Archive (Copy) user libraries and user data from the UserData and Producers folders.
4. Uninstall the program from the Control Panel.
|
ATTENTION: To return the license to the CADprofi server, an active internet connection is required. Only after the license has been correctly returned will it be possible to activate the license on another computer. If there is no internet connection , the license will only be removed from the user's computer, without being returned to the CADprofi server, so it will not be possible to activate it on another computer. |
To remove the license, run the CADprofi - about the program command and press the License activation button. In the "Registration / activation of CADprofi" dialog window select the appropriate license serial number and from the context menu (right mouse button) and select the Delete option. Correct return of the license will be confirmed by an appropriate message.

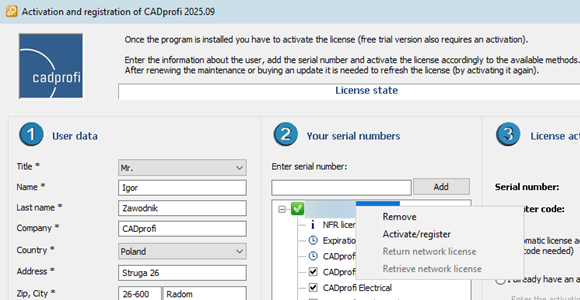

"Registration/Activation CADprofi" dialog window
You can check your current license status on the Manage your license webpage.
Before uninstalling the program, you must disconnect CADprofi applications from CAD programs, which will remove CADprofi menus and toolbars from CAD programs and restore various settings used by the application. Restoration is performed in the CADprofi configuration program, which is located in the Windows start menu.
In the configuration program, select the CAD program you are using (e.g. AutoCAD, BricsCAD , GstarCAD , ZWCAD or other), and then press the "Restore CAD" button.

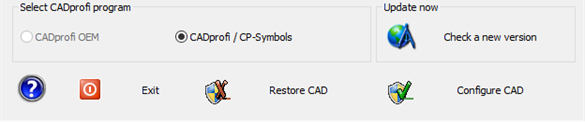

"CADprofi Configuration" dialog window
After restoring the settings, run the CAD program (using its icon) to check whether the CADprofi add-on has actually disappeared from the menu and toolbars.
Optional:
If you have multiple CAD programs, you can automatically disconnect CADprofi add-on from all CAD programs. This should be done from the CMD console .
Launch Command Prompt ( CMD ) and type:
C:\"Program Files "\CADprofi\2025.0\CpSysReg.Exe sys *-s* none
Note: The default path to the configuration program for CADprofi 2025 is given above. This path may be different if the program is installed in a different folder or when using a different version of CADprofi.
If your own libraries of symbols, lines or objects were defined on your previous workstation, it is recommended to make copies of this data.
This will allow you to transfer the defined elements to another computer.
In the case of a standard installation of the program, user data is located in the following folders:
C:\ProgramData\CADprofi\UserData
C:\ProgramData\CADprofi\Producers\Working_symbols
C:\ProgramData\CADprofi\Producers\Working_folder.
C:\ProgramData\CADprofi\Producers\Working_parametrics.
If the program was installed in a location other than the default one, the above folders are located in the installation folder.
CADprofi program should be uninstalled in the standard manner - preferably from the Windows Control Panel in the Programs and Features applet .
(Optional) Delete remaining files. After removing the program, files and folders may remain on the disk, e.g. data downloaded by the online update system and others. These files are located in the program installation folder and in the program data folder.
By default, these are C:\Program Files\CADprofi and C:\ProgramData\CADprofi .
