Dimensions editing

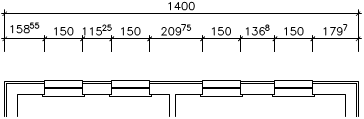

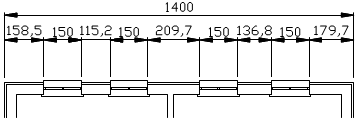

1.    Run the Dimensions editing  command.

2.    In the Dimensions editing dialog window select the dimension style that you would like to apply to existing dimensions.

3.    (Optional) Click the Create a new dimensioning style , to add a new style to the current drawing.

4.    (Optional) Enable the option Change parameters of selected style, in order to make changes in the dimension styles settings.

5.    Click the Replace button to close the dialog window and enable the dimensions selection.

6.    Select dimensions, which style you would like to replace.

7.    Click the Enter key or right mouse button to make the changes and end the command.
