CADprofi can create schematics in both isometric and dimetric view at any angle. Enabling isometric view during object insertion will automatically incline the symbol in accordance with the selected angle.
Angle – determines the isometric symbol’s incline angle. Available options: 30° (default), 45°, Other (user can specify his own incline angle).

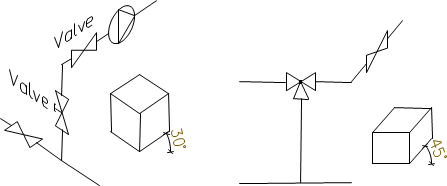

30° isometry 45° diagonal dimetry °
