Outlets

The Outlets command allows insertion of outlets, ventilators, exhaust units, fans, air intakes and other ventilation elements.

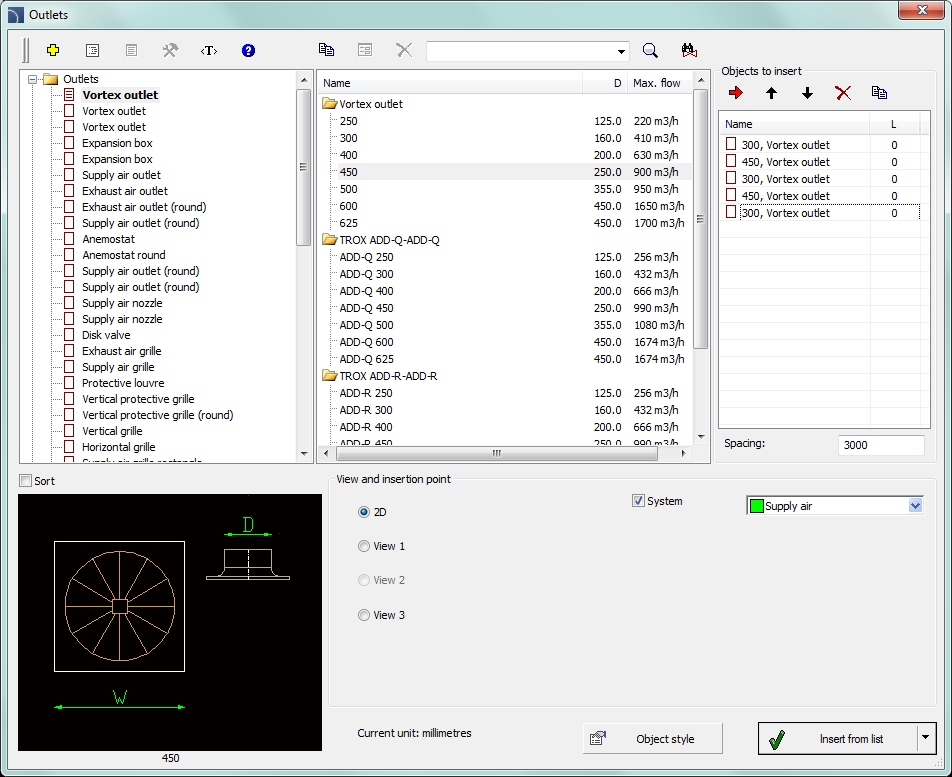

Outlets dialog window



Dialog window contains many elements from the Parametrical armature) chapter.

Objects to insert – list of objects that will be inserted into the drawing. The objects order can be changed with the help of move selected rows up , move selected rows down  buttons.
The Add element to a list  button adds object to the list of objects to insert.

Spacing – specifies the distance between objects that will be inserted.



Procedures

Inserting outlets

1.    Run the Outlets  command.

2.    Specify the dimensions of object that is going to be inserted.

3.    (Optional) Enable/disable the Insert multiple option.

4.    Click the OK button to insert object into the drawing.

5.    Specify the object insertion point.

6.    Specify the object rotation angle.
