Quick edit

The Quick edit command allows to perform basic editing operations on symbols and objects. After running the command, user should indicate the symbol that he would like to edit. Near the symbol, additional markers will appear that allow to instantly make the necessary changes.



Markers that are displayed after indicating the object:

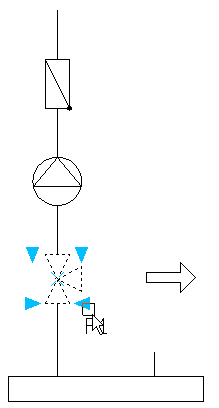

    Mirror  - markers that allow to perform symbol mirroring.

    Scale - allow to increase or decrease the symbols size on the drawing. The    sign increases the symbol’s scale by 25%. The    sign reduces the symbol’s scale by 25%. If the current scale value is 200, then the markers will increase/decrease the symbol’s scale by 50.

  Copy - allow to quickly create multiple copies of the indicated object.

  Rotation  - allow to rotate the symbol around the insertion point. If the symbol is located in the line, then the application will only allow to rotate it by 180°.

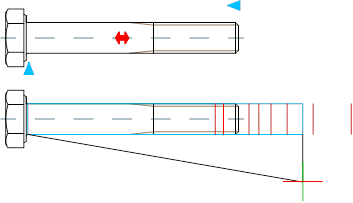

  Lengthen  - this marker is used to lengthen or shorten normalized elements e.g. screws, rivets, etc.

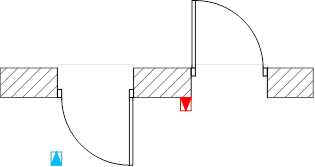

  Switch - allows user to change the side of windows and doors insertion by turning the selected element without losing its position.

  Rotate - allows to change the view of the selected fitting or valve. It is thus possible to switch between the element available views.

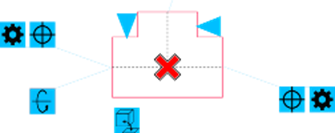

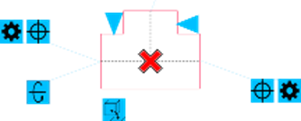

  Draw sequence - allows to draw a line sequence in general view beginning from the end of the fitting or armature.

  Sequence settings - turns on the settings window for the line sequence and allows to draw it.

  Draw detailed sequence - allows to draw a line sequence in detailed view by opening the window of available detailed sequences beginning from the end of the fitting or armature.

  Delete - deletes an element from the drawing.

  Alternative view - allows to insert a different view for the selected object.

  Endpoint edit  - allows to freely edit the line placement (as a handle).

  Edit  - opens a dialog window that allows user to edit a fitting or a line segment.

  Length edit - allows to edit the length of the segment in a given direction.

  Dimension edit - allows to edit the width or diameter of the line segment.

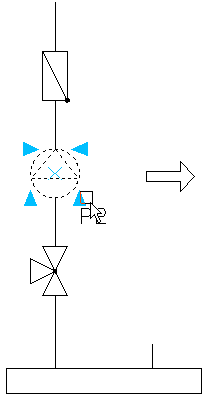

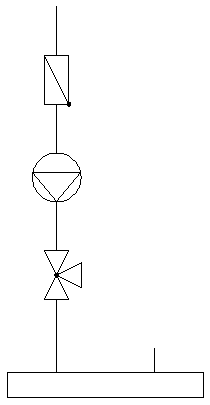

Quick edit is often used after user adds several symbols into the drawing e.g. with the Multisymbols command. If several symbols are being inserted then it is possible that some symbols may be inserted in the opposite way. Quick edit will allow to quickly rotate them in the proper way.

The Quick edit command is also useful to turn objects, e.g. when it’s needed to change the direction of duct devices or armature.



6 Procedures

Quick edition

1.    Run the Quick edit    command.

2.    Indicate a symbol that will be edited.

3.    Perform edition using markers of available options.

4.    (Optional) Rotate the symbol with the Mirror      markers (P1, P2).

5.    (Optional) Increase/decrease the symbol by clicking the      markers.

6.    (Optional) Rotate the symbol by clicking the rotate    marker.

7.    (Optional) Click on an additional element that you would like to edit.

8.    (Optional) Insert a copy after selecting the copy    marker.

9.    End the command with the right mouse button or the Enter key.





  Quick edition





Notice

„Mirror”, „Scale”, and „Rotate” can be used repeatedly, because they don’t end the „Quick edit” command. After user copies the symbol, the command is being completed.

Available options depend on the type of edited object.

The quick edit command also allows to:



Edit isometric symbols

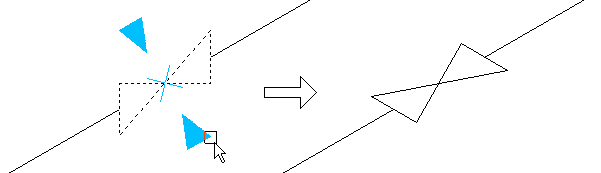

Rotate armature

Pipes/ducts

Fittings

Armature

Rotate doors and windows

Edit standardized mechanical elements
