Manufacturers library

Manufacturers’ libraries contain blocks of many machinery and construction equipment producers. Objects are shown in different views. Many objects are also available as 3D models. Thanks to the parametrical technology, individual libraries take up very little space. This technology also allows to automate many tasks that are involved with designing or preparing specifications.



The Products library command allows to select objects and symbols that are defined by user that used the Add objects to library command.



Libraries are also distributed by the manufacturers that have got a license for the
CP-Manufacturers program. Because of that it is possible to expand manufacturer libraries at any time by installing additional libraries that are provided by the manufacturers.
The Products library command allows to select the active library. After inserting elements from the selected library it is possible to open the same library again by clicking the Previous library command. Thanks to this user omits the manufacturer selection window.

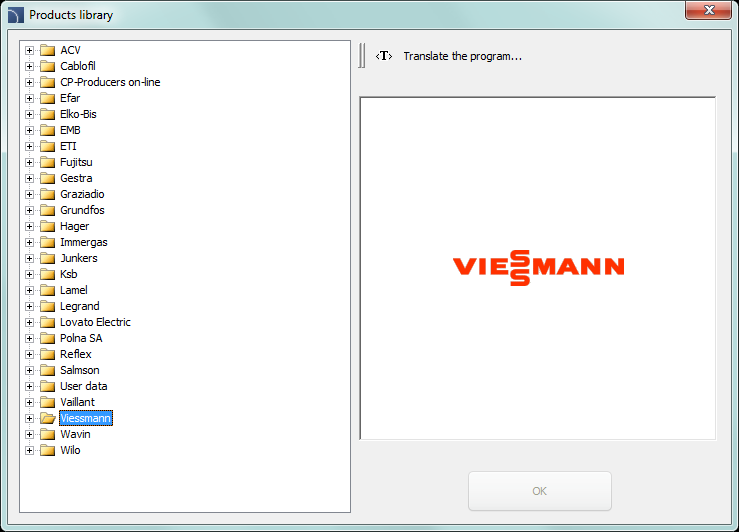

Manufacturer selection dialog window

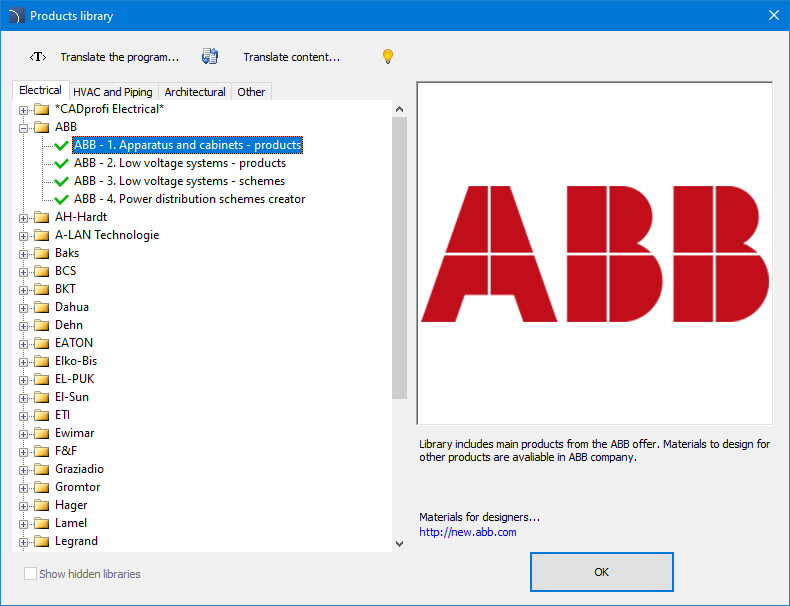

After selecting the library a dialog window will appear in which user can view the selected devices or schemes for the currently selected manufacturer. Library structure may be different, depending on the selected manufacturer, but the way how to work with manufacturers objects is very similar to working with standard CADprofi objects, that were described in the CADprofi modules sections.
